NEW QUESTION # 11
An electrical designer is working in a workshared project with a team of people. The electrical designer does not want to see the linked architectural model in any of their views. The rest of the team still needs to see the architectural link.
Which process should the electrical designer use?
- A. Manage Links > Select architectural link > Click Unload for me
- B. Manage Links > Select architectural link > Click Remove
- C. Manage Links > Select architectural link > Click Unload
- D. Manage Links > Select architectural link > Click Unload For all users
Answer: A
Explanation:
In Autodesk Revit workshared projects, it is common for teams from multiple disciplines (architecture, structure, MEP) to collaborate using linked Revit models. Sometimes, an electrical designer may wish to hide or unload the linked architectural model only for their local session, without affecting how other team members see it.
Revit provides the "Unload for Me" option specifically for this purpose.
According to the Autodesk Revit MEP User's Guide (Chapter: Worksharing - Managing Linked Models):
"When working in a shared model environment, you can unload a link temporarily from your local file using the Unload for Me command in the Manage Links dialog. This action affects only your local copy and does not impact other users working on the project. The link remains loaded for all other team members." This means that using Manage Links → Select the architectural link → Click Unload for Me, the designer can remove the visual presence of the architectural model from all of their views without impacting the rest of the team. The link remains active in the central model, and other disciplines will continue to see it as usual.
Here's a breakdown of the incorrect options:
B . Remove: Permanently removes the link from the project, affecting all users - not allowed in a team collaboration environment.
C . Unload: Temporarily unloads the link for everyone upon synchronization with the central model.
D . Unload For all users: Explicitly unloads the link globally; all users lose access to the link after the next sync.
Therefore, the correct process for the electrical designer to hide the architectural link only for themselves is:
➡️ Manage Links → Select architectural link → Click "Unload for Me."
References:
Autodesk Revit MEP 2011 User's Guide, Chapter 55: Worksharing - Managing Links, pp. 1342-1344.
Autodesk Revit 2021 Help, "Unload for Me vs. Unload - Managing Links in Workshared Projects." Smithsonian Facilities Revit Template User's Guide (2021), Section 6.3.3 - Worksharing and Link Visibility Controls.
NEW QUESTION # 12
Exhibit.
An electrical designer creates a panel schedule. Which Electrical Equipment parameter defines the default name of the panel schedule view?
- A. Panel Name
- B. Description
- C. Type Mark
- D. Mark
Answer: A
Explanation:
In Autodesk Revit for Electrical Design, when a designer creates a panel schedule, the default name of the panel schedule view is automatically derived from the Panel Name parameter of the Electrical Equipment family to which the circuits are assigned.
According to the Revit MEP User's Guide (Electrical Systems section: Panel Schedules):
"When you create a panel schedule, Revit uses the Panel Name parameter of the electrical equipment to define the default schedule name. The Panel Name identifies the distribution panel that supplies the circuits. This name appears in both the Panel Schedule view and in circuit information tags."
- Revit MEP User's Guide, Chapter 17: Electrical Systems - Panel Schedules The Panel Name is a critical electrical equipment instance parameter located in the Electrical - Circuiting group of properties.
It appears in both the Electrical Equipment Properties Palette and the Panel Schedule Header. This name can later be modified manually, but by default, it directly controls the naming convention of the generated schedule.
In contrast:
A . Type Mark - identifies types within the family for documentation and does not control schedule naming.
B . Mark - a unique instance identifier often used for tags, but not for panel schedule view naming.
C . Description - provides descriptive text only for documentation or labeling.
D . Panel Name - correctly defines and drives the default schedule view name for panels and circuits.
When a panel (electrical equipment) is placed in the model and circuits are connected, Revit generates a new Panel Schedule View automatically titled using the value entered in the Panel Name field (e.g., "Panel LP-1"). This ensures consistency between the modeled equipment and the schedule documentation.
Verified Reference Extracts from Revit for Electrical Design Documentation:
Autodesk Revit MEP User's Guide (2011), Chapter 17: Electrical Systems - Creating and Editing Panel Schedules:
"The name of the panel schedule view is determined by the Panel Name property of the electrical equipment." Revit MEP Electrical Design Training Manual, Module: Electrical Equipment and Panel Schedules:
"Panel Name is used by Revit as the default identifier for any panel schedule view created for that equipment."
NEW QUESTION # 13

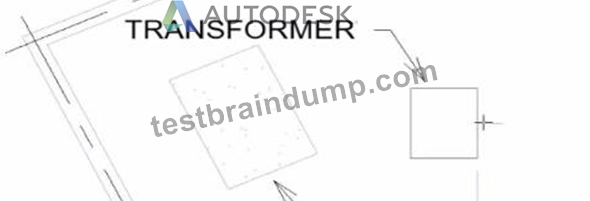

Refer to exhibit.
An electrical designer wants to place electrical equipment on the pad.
How should the component be aligned to the pad before placement?
- A. Place the cursor anywhere over the object and then press Spacebar.
- B. Start the Align tool. tab to select the object edge, and then select the equipment edge.
- C. Place the cursor over an edge of the object and then press Spacebar.
- D. Start the Align tool and select the edges to be aligned.
Answer: C
Explanation:
In Autodesk Revit, when placing electrical equipment such as transformers, disconnects, or switchboards onto a pad or foundation, precise alignment is essential for accurate coordination with architectural and structural elements. During component placement, Revit provides an intuitive way to align an object before final placement using the Spacebar in combination with the object's edges.
When the cursor is hovered over an edge of the component (not just anywhere on it) and the Spacebar is pressed, Revit cycles the component's orientation, rotating it 90 degrees around its insertion point each time. This technique allows the designer to visually align the equipment's orientation with the pad or architectural geometry before clicking to place it.
According to the Autodesk Revit MEP User's Guide under "Placing and Modifying Components":
"While placing a component, move the cursor over an edge and press the Spacebar to rotate the element incrementally. This method helps align electrical or mechanical equipment with nearby reference geometry before placement." This method is ideal for electrical designers positioning pad-mounted equipment, ensuring that components such as transformers or switchgear are oriented precisely to site geometry, conduit routes, or building walls.
NEW QUESTION # 14
An electrical designer receives an architectural model and links it into the electrical model.
The designer wants to use the Copy/Monitor tool to copy the exact electrical fixtures created by the architect.
The designer also wants the software to automatically detect new electrical fixtures added to the architectural model.
Select the correct coordination settings from the drop-down lists
Answer:
Explanation:
NEW QUESTION # 15
Refer to exhibit.
To which panel Is Panel P4 circuited?
- A. Panel P 2
- B. Panel P 3
- C. Panel P 1
- D. Panel P 5
Answer: A
Explanation:
In Autodesk Revit MEP Electrical Design, the System Browser is used to analyze and verify electrical systems, including panelboard connections, circuit hierarchies, and connected loads.
From the exhibit, the Properties palette shows that the selected equipment is a Lighting and Appliance Panelboard (208V MLO, 100A), named P4. To determine the parent panel that feeds Panel P4, we refer to the System Browser, which organizes the entire electrical distribution network hierarchically under the Electrical discipline.
In the System Browser on the right, under the Electrical category, we can observe that Panel P4 is nested directly under Panel P2. This organization indicates that P4 is circuited to (or fed from) Panel P2.
According to the Revit MEP 2011 User's Guide, Chapter 4, "Electrical Systems-Using the System Browser," it states:
"The System Browser displays electrical systems in a tree structure. Each subpanel or device listed beneath a main panel is connected to that panel through an electrical circuit. When a panelboard appears under another, it indicates the subpanel is fed from that parent panel." This is further reinforced in Smithsonian Facilities Revit Electrical Template Documentation (April 2021), Section 8.3 "Documentation Views," which describes:
"Panel schedules and browser hierarchies show the distribution sequence. Subpanels appear indented beneath their source panel, indicating electrical dependency and circuit assignment." Therefore, by interpreting both the Revit interface and Autodesk's documentation, Panel P4 is a subpanel connected to Panel P2, confirming that its electrical feed is assigned from Panel P2.
Final Verified answer: B. Panel P2
Reference Sources:
Autodesk Revit MEP 2011 User's Guide, Chapter 4 - Electrical Systems and the System Browser Smithsonian Facilities Revit Template User's Guide, Section 8.3 - Electrical and Fire Alarm Templates: Documentation Views
NEW QUESTION # 16
An electrical designer needs to directly connect panel B to panel A without a breaker. Panel A's load must reflect the entire load from panel B. Which conditions must be met to ensure that panel B is correctly connected to panel A?
- A. Both panels are assigned to the same switchboard, and the subfeed lug breaker option is selected.
- B. Both panels are assigned to the same distribution system, and the connection type is set to feed through lugs.
- C. Both panels are assigned to the same distribution system, and the circuit subfeed panel type option is selected.
- D. Both panels are connected via a transformer, and the connection type is set to feed through lugs.
Answer: B
Explanation:
In Autodesk Revit Electrical Design, when an electrical designer needs to directly connect Panel B to Panel A without a breaker-such that Panel A's load includes the total load from Panel B-the correct method is to configure both panels to use the same distribution system and to set Panel B's connection type to Feed Through Lugs.
According to the Autodesk Revit MEP User Guide, Chapter 17: Electrical Systems, under "Creating Power and Lighting Circuits" and "Panel Properties" sections:
"When connecting panels in series, ensure both devices share the same distribution system. If a subpanel is required to pass its total load through to another panel without circuit protection, specify the connection type as Feed Through Lugs. This connection allows the upstream panel to include the total connected load from the subpanel in its own load summary." The feed-through lugs configuration enables the second panel (Panel B) to be electrically tied to the first (Panel A) as though it were an extension of the same bus. Unlike breaker or main-lug-only setups, the feed-through configuration does not insert a protective breaker between the two panels. Instead, it provides a continuous feeder connection where the parent panel's load schedule automatically aggregates the downstream panel's total load.
This setting is found in Revit's Properties Palette for electrical equipment:
Under Electrical - Circuiting, the designer must ensure both panels use the same Distribution System (e.g., 208Y/120V 3 4W).
Then, under Connection Type, select Feed Through Lugs.
The Smithsonian Facilities Revit Template Electrical Standards Guide also confirms this best practice:
"Feed-through panels are used when a subpanel's total load must be reported in the main distribution panel without additional breakers. Both panels must share identical voltage and phase configurations within the same distribution system." Why the Other Options Are Incorrect:
A . The "subfeed lug breaker" introduces a breaker, contradicting the requirement of no breaker.
B . "Circuit subfeed panel type" is not a standard Revit configuration; Revit uses connection types instead.
D . Transformers alter the voltage distribution; the question specifies a direct connection within the same system.
Therefore, the correct configuration that meets all design and load reflection requirements is:
✅ C. Both panels are assigned to the same distribution system, and the connection type is set to feed through lugs.
References:
Autodesk Revit MEP User Guide - Chapter 17 "Electrical Systems," Sections: "Creating Power and Lighting Circuits" and "Panel Properties," pp. 420-426 Autodesk Revit Electrical Design Essentials - Topic: "Feed-Through Connections and Subpanel Load Reflection" Smithsonian Facilities Revit Template User's Guide - Section 9.3 "Panel Configuration and Feed-Through Connections," p. 96
NEW QUESTION # 17
An electrical designer is routing conduit through a building model to coordinate with other disciplines, the electrical designer wants to view selected components in a cropped 3D view.
With the conduit components selected, which tool should the designer use?
- A. Selection Box
- B. Section Box
- C. Default 3D View
- D. Scope Box
Answer: A
Explanation:
In Revit Electrical Design, the Selection Box tool is used to quickly isolate and display selected components in a cropped 3D view. When an electrical designer selects conduits or devices in a model and chooses Selection Box from the Modify tab, Revit automatically generates a 3D view bounded tightly around the selected elements, helping coordinate routing in confined or congested spaces.
According to the Revit MEP User's Guide under "Creating 3D Views":
"Use the Selection Box tool to create a 3D view that isolates selected elements. Revit automatically crops the view extents to the selected geometry." This feature is critical in multidisciplinary coordination because it allows the electrical designer to review specific conduits, cable trays, or lighting paths in context without manually adjusting view boundaries.
In contrast:
Default 3D View (Option B) shows the entire model.
Scope Box (Option C) controls view extents in 2D views or view templates, not instant isolation.
Section Box (Option D) is manually adjusted within an existing 3D view but does not automatically generate a cropped view around selected elements.
Therefore, the Selection Box is the correct and most efficient tool for this task.
References:
Autodesk Revit MEP User's Guide - Chapter 47 "Creating and Managing 3D Views," pp. 1108-1111 Smithsonian Facilities Revit Template User's Guide - Section 3.6 "Egress Routes and Coordination Views," p. 40 Autodesk Revit Electrical Design Essentials - 3D Visualization and Coordination Techniques
NEW QUESTION # 18
Which feature shows which user created 3n element?
- A. Show History
- B. Worksharing display modes
- C. Worksets dialog
- D. Gray Inactive Worksets
Answer: B
Explanation:
In Autodesk Revit, the Worksharing Display Modes feature allows designers to visually inspect ownership and editing information about elements in a workshared model.
According to the Autodesk Revit MEP User Guide - Chapter 54 "Working in a Team":
"Worksharing Display Modes can be used to visualize the ownership of elements, including which user created or modified them. For example, you can use the Worksharing Display command to show elements by their owner, workset, or checkout status." Thus, this mode identifies which user created or owns an element - making B. Worksharing display modes the correct choice.
Other options:
A . Gray Inactive Worksets: Only shows non-active worksets in gray, not creator info.
C . Show History: Displays synchronization comments, not element ownership.
D . Worksets dialog: Shows ownership of worksets, not individual elements.
NEW QUESTION # 19
How can an arrowhead be added to a lag leader line?
- A. Enable Leader Arrowhead in the instance properties.
- B. Change the Leader Type to Free End.
- C. Select the tag and enable Leader Line in the Properties palette
- D. Choose an arrow type for the Leader Arrowhead in the Type Properties.
Answer: D
Explanation:
In Autodesk Revit for Electrical Design, arrowheads on leader lines-such as those used with tags, text notes, or annotations-are controlled through Type Properties, not through instance properties or free-end options.
According to the Revit MEP User's Guide - Annotating Chapter (Chapter 47 and 42), the section "Modifying Tags" explains:
"Select the tag, and on the Properties palette, click (Edit Type). In the Type Properties dialog, select a value for Leader Arrowhead to add an arrowhead to the leader line." This confirms that the arrowhead is defined at the type level, meaning any change applies to all tags or text notes of that annotation type throughout the project. The Leader Arrowhead property allows the designer to choose from predefined arrowhead styles (like "Filled Arrow," "Dot," "Tick Mark," etc.), which are defined globally under:
Manage tab → Settings panel → Additional Settings → Arrowheads.
Furthermore, the document specifies under "Leader Arrowhead Properties":
"Sets the arrowhead shape on the leader line. The value is the name of the arrowhead style defined by the Arrowheads tool." This behavior applies to all annotation categories, including text notes, keynotes, material tags, and electrical device tags, maintaining consistency across all view types in an electrical project.
Therefore, Option C is the correct answer because arrowheads are configured via Type Properties, while the other options are inaccurate:
Option A (Free End) only defines leader attachment behavior.
Option B (Instance properties) does not include a "Leader Arrowhead" toggle.
Option D (Enable Leader Line) only adds or removes a leader line, not the arrowhead style.
References:
Autodesk Revit MEP User's Guide - Chapter 47 "Annotating," pp. 1040-1055 Autodesk Revit MEP User's Guide - Chapter 42 "Text Notes and Tags," pp. 936-949 Autodesk Revit Electrical Design Essentials - "Leader Arrowhead Properties and Annotation Standards"
NEW QUESTION # 20
An electrical designer needs to add a drafting view to a model from another project. What is the method to do this?
- A. Select Link Revit, browse to the desired model, and then select desired drafting view
- B. Select Open, select the desired project, right-click the desired drafting view, and then copy/paste
- C. Select Insert from File, select Insert Views from File, browse to the desired project, and then select the drafting view.
- D. Select Transfer Project Standards, select the desired project, and then select the drafting view.
Answer: C
Explanation:
In Autodesk Revit, a drafting view is a 2D view that contains detail information not directly associated with the model. When an electrical designer needs to reuse a drafting view from another project (for example, standard details or symbols), the correct method is to use the Insert Views from File command under the Insert tab.
The Autodesk Revit MEP User's Guide - Chapter 48 "Detailing" (page 1072) describes the process as follows:
"Inserting a Drafting View from Another Project
Click Insert tab ➤ Import panel ➤ Insert from File drop-down ➤ Insert Views from File.
In the Open dialog, select a project file, and click Open.
The Insert Views dialog opens, displaying all the views that are saved in that project.
Select the desired drafting views and click OK."
(Revit MEP User's Guide, p. 1072)
This command imports the drafting view into the current Revit model while preserving annotations, filled regions, detail components, and text. It ensures that any standard electrical symbols, notes, or schematics created previously can be directly reused without rebuilding the detail from scratch.
If any duplicate type names exist, Revit automatically uses the types and properties from the current project, displaying a warning if necessary.
"Revit MEP creates a new drafting view with all the 2D components and text. If you have duplicate type names, the type name and properties from the current project are used." (Revit MEP User's Guide, p. 1072) Supporting Documentation Extracts:
"Saving Drafting Views to an External Project
Select a drafting view in the Project Browser.
Right-click the view name, and click Save to New File."
(Revit MEP User's Guide, p. 1071)
"The saved project can then be used later to insert drafting views into another Revit project using Insert Views from File." (Revit MEP User's Guide, p. 1072)
NEW QUESTION # 21
An electrical designer is creating an electrical fixture family for a receptacle. The designer nests a generic annotation family that contains the receptacle symbol and a label What must be done in the electrical fixture family so that the label value can be changed in a project?
- A. Create a label and use a formula to set it equal to the generic annotation label.
- B. In the Visibility Settings for the nested generic annotation, select Label.
- C. Enable Shared in the generic annotation family and re-load it into the fixture family.
- D. Associate the nested family's parameter to a parameter in the electrical fixture family.
Answer: D
Explanation:
In Revit, when a designer nests a Generic Annotation family (such as a receptacle symbol) inside an Electrical Fixture family, and that annotation includes a label, the label value cannot be changed directly in the project unless the parameter controlling that label is properly associated (linked) to a parameter in the host (electrical fixture) family.
According to Autodesk Revit Electrical Design documentation, under "Creating Family Parameter Links", it is explicitly stated:
"By linking family parameters, you can control the parameters of families nested inside host families from within a project view. You can control instance parameters or type parameters." The procedure describes the correct process to make the label value editable in a project:
"Click the button next to a parameter that is of the same type as the one you created in Step 6. For example, if you created a text parameter, you must select a text parameter here. In the dialog that displays, select the parameter you created in Step 6 to associate it with the current parameter, and click OK."
"The nested family changes according to the value you entered."
This means that the designer must associate the nested family's label parameter (usually a text parameter controlling the annotation label) to a corresponding parameter in the host electrical fixture family. Once linked, this host parameter appears in the project's Properties palette, allowing the designer to change the label value directly.
Other options-such as creating formulas, modifying visibility, or enabling "Shared"-do not make the label editable in the project unless the parameter link is established.
NEW QUESTION # 22
Refer to exhibits.
What is the demand load on Panel B?
- A. 30kVA
- B. 55kVA
- C. 65kVA
- D. 40kVA
Answer: B
Explanation:
In Revit Electrical, Demand Factors are applied through Load Classifications to compute an Estimated Demand Load rather than simply summing connected loads. The documentation states: "You use demand factors to adjust the rating of the main service... Demand factors are assigned to load classifications, and load classifications are assigned to device connectors. The estimated load for a device is calculated by multiplying the load by the demand factor. ... The panel schedule can also display the load for each load classification." In the exhibit's Demand Factor definition (for the Motor classification), the Calculation method is By quantity with Total at one percentage selected. Two quantity ranges are defined: 0-5 items at 100% and 5-unlimited at 50%. An additional checkbox adds an extra fixed load of 5000 VA to the calculated result. (This follows Revit's behavior of applying the selected demand factor to the connected load and then adding any specified additional load to the result for that classification.) Panel B feeds only panels E and F. The connected motor loads downstream are:
Panel E: 20 kVA + 10 kVA = 30 kVA
Panel F: 5 kVA + 5 kVA + 10 kVA = 20 kVA
Total connected motor load on B = 30 + 20 = 50 kVA (five items).
Because five items fall in the 0-5 range at 100%, the demand factor is 100% → 50 kVA. Per the definition, add an additional load of 5000 VA (5 kVA) to the calculated result:
Demand Load on Panel B = 50 kVA × 100% + 5 kVA = 55 kVA.
Therefore, the correct choice is 55 kVA.
References: Revit MEP Electrical documentation - Demand Factors (assignment to load classifications, multiplication to compute estimated load, and display in panel schedules).
NEW QUESTION # 23
Refer to exhibit.
An electrical designer has accidentally hosted Panel B to Panel A. Select two ways the designer can correct hosting. (Select two.)
- A. Use the Edit Work Plane command
- B. Edit the Host value in the Properties palette.
- C. Use the Pick New command in the Work Plane panel.
- D. Use the Move command.
- E. Edit the Mounting value in the Properties palette.
Answer: A,C
Explanation:
In Autodesk Revit's Electrical discipline, when electrical components such as panelboards are hosted incorrectly (for example, Panel B hosted to Panel A instead of a wall or level), the hosting relationship must be corrected by reassigning the work plane or host. This is essential because hosted electrical elements depend on the geometry or level of their host for placement, alignment, and coordination.
According to the Revit MEP User's Guide (Chapter 45 "Work Planes and Element Hosting"):
"If a hosted element is placed incorrectly or the host has changed, use the Edit Work Plane or Pick New commands to redefine its host or work plane." Here's how these two tools apply:
Pick New (Option A)
Located under the Work Plane panel on the Modify tab, this command allows you to select a new face or host (e.g., a wall, ceiling, or floor) for the existing component. It effectively reassigns the element's host without deleting or recreating the element.
"Use Pick New to specify a different face or surface as the host for a component that was incorrectly placed."
Edit Work Plane (Option E)
This command lets the designer redefine the reference level or named work plane to which an element is associated. For hosted electrical equipment (like lighting or panels), this ensures the object references the correct structural or architectural surface.
"To correct hosting errors, open Edit Work Plane from the Modify tab, and assign a new named plane, level, or face." Incorrect Options Explanation:
B . Edit Mounting value - changes only how the panel is mounted (e.g., recessed or surface), not the host itself.
C . Move command - repositions the element but does not change the hosting relationship.
D . Edit Host value - the "Host" parameter is read-only; it cannot be edited directly.
Thus, the correct methods to rehost Panel B from Panel A to the correct wall or work plane are through Pick New and Edit Work Plane, ensuring proper association and maintaining system connectivity.
References:
Autodesk Revit MEP User's Guide - Chapter 45 "Work Planes and Hosting," pp. 1068-1072 Smithsonian Facilities Revit Template User's Guide - Section 6.2.3 "Complex Geometry and Multiple Parametric Relationships," p. 57 Autodesk Revit Electrical Design Essentials - "Rehosting Electrical Equipment and Devices"
NEW QUESTION # 24
An electrical designer is working on a project with multiple buildings. The designer wants to organize the Project Browser by building For example, all views related to Building A will be sorted under Building A. and all views related to Building B will be sorted under Building B.
The designer decides to create a new parameter, assign it to views, and then sort the Project Browser according to the new parameter.
Which parameter should the designer use?
- A. A reporting parameter
- B. A family parameter
- C. A project parameter
- D. A global parameter
Answer: C
Explanation:
In Autodesk Revit, Project Parameters are used to add custom fields that apply to multiple elements within a specific project file - such as views, sheets, or schedules. These parameters allow project teams to categorize, group, and sort information within the Project Browser or within schedules without editing families or external files.
As defined in the Revit MEP User's Guide and Revit Structure Parameters Chapter:
"Project parameters are specific to a single project file. Information stored in project parameters cannot be shared with other projects. A project parameter can be used, for example, to categorize views within a project." This statement directly confirms that project parameters are the correct tool for sorting or grouping views in the Project Browser.
To organize elements (like views or sheets) by building, the designer can create a custom project parameter named "Building" and assign it to the View category. Once assigned, the parameter values (e.g., "Building A" or "Building B") can be filled in for each view.
The Smithsonian Facilities Revit Template Guide further supports this:
"View purpose is a Revit project parameter, providing a means for users to organize the many views that may exist in a BIM." Thus, using a project parameter allows users to add a "Building" field to each view, enabling customized browser organization (e.g., group views by Building A, Building B, etc.) without requiring shared parameters or family editing.
References:
Revit MEP User's Guide - Chapter "Parameters" p. 1541-1543
Smithsonian Facilities Revit Template User's Guide - Section 2.8.1 "View Types and View Templates," p. 29 Autodesk Revit Electrical Design Essentials - Parameter Management Section
NEW QUESTION # 25
Refer to exhibit.
Which two actions were used to create this light fixture schedule? (Select two.)
- A. Sorted by instance and quantity.
- B. Deselected Itemize every instance.
- C. Filtered to only show lights that have a type mark value.
- D. Sorted by type mark.
- E. Added both electrical and switch system settings.
Answer: B,D
Explanation:
In the given Lighting Fixture Schedule, each row represents a lighting fixture type rather than individual instances, and the "Count" column summarizes how many fixtures of that type exist in the project. To achieve this layout in Revit, two specific actions must be performed in the Schedule Properties dialog:
Deselected "Itemize every instance."
The Revit documentation explains:
"Itemize every instance. This option displays all instances of an element in individual rows. If you clear this option, multiple instances collapse to the same row based on the sorting parameter. If you do not specify a sorting parameter, all instances collapse to one row." By deselecting this checkbox, Revit consolidates identical fixture instances of the same type into a single row - exactly as shown in the exhibit, where each "Type Mark" (A, B, C, etc.) appears once with a summarized Count.
Sorted by Type Mark.
On the same Sorting/Grouping tab, Revit allows users to organize the schedule by a specific field:
"On the Sorting/Grouping tab of the Schedule Properties dialog, you can specify sorting options for rows in a schedule... You can sort by any field in a schedule, except Count." In the example, fixtures are sorted alphabetically by their "Type Mark" (A through E). This ensures the grouped and counted results appear in order.
Other options-such as filtering by type mark or adding switch data-do not impact how instances collapse or group within the schedule.
NEW QUESTION # 26
Refer to exhibits.
An electrical designer models an existing receptacle on an existing wall that the architect has indicated to be demolished.
The view is intended to show demolition, and the view's Phase is set to New Construction. How should the designer indicate that the receptacle must also be demolished?
- A. Set the receptacle parameter Phase Demolished to New Construction.
- B. Add a Demolition phase, then set the receptacle parameter Phase Demolished to Demolition.
- C. Set the receptacle parameter Phase Demolished to Demolition.
- D. Set the receptacle's type parameter Match Phasing to Host.
Answer: A
Explanation:
In Autodesk Revit, phasing allows designers to track existing, demolished, and new elements across different project stages. Every model element includes two key phasing parameters:
Phase Created - defines when the element was built or introduced.
Phase Demolished - defines when the element is removed or demolished.

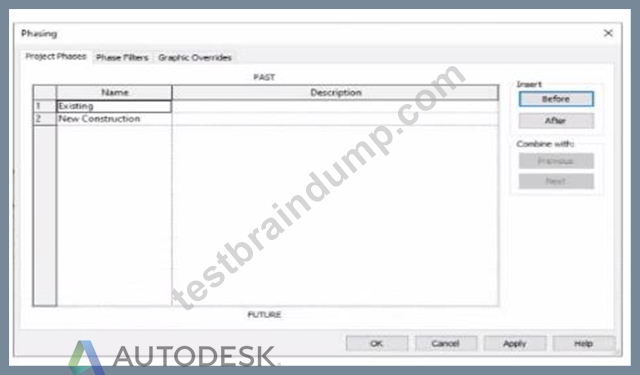

In the provided exhibits:
The project contains two phases: Existing and New Construction.
The receptacle's Phase Created parameter is set to Existing, indicating it belongs to the pre-existing building condition.
The architectural wall hosting the receptacle is to be demolished during New Construction.
When a view's Phase is set to New Construction and its Phase Filter is configured to show demolition, only elements whose Phase Demolished equals New Construction will appear as to be demolished. Therefore, the electrical designer must set the receptacle's Phase Demolished value to New Construction so that it graphically displays as a demolished element in the demolition plan.
As explained in the Autodesk Revit MEP User's Guide - Phasing and Coordination:
"Elements created in one phase and demolished in a subsequent phase must have their 'Phase Demolished' parameter set to that later phase to display properly in demolition views." Thus, to correctly coordinate with the demolition of its host wall, the receptacle must be flagged for demolition during New Construction.
NEW QUESTION # 27
Exhibit.
An electrical designer is working within a workshared electrical model The designer reloads the linked architectural model and receives the message as shown in the exhibit What does this message indicate?
- A. A monitored element in the architectural model has changed.
- B. There is a new interference with the architectural model.
- C. There is a new coordination message within the architectural model.
- D. An elements host within the architectural model has changed.
Answer: A
Explanation:

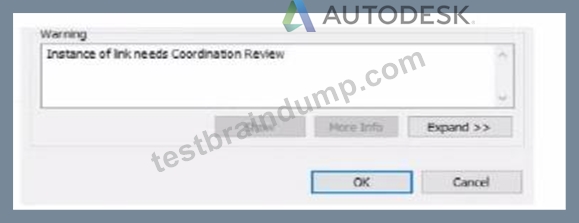

The warning message shown - "Instance of link needs Coordination Review" - appears when Revit detects a modification in a monitored element within a linked model, typically during a coordination workflow between architectural and MEP (electrical, mechanical, plumbing) disciplines.
According to the Revit MEP User's Guide (Chapter 46 "Copy/Monitor and Coordination Review"):
"When a monitored element changes in the linked model, Revit displays a warning message indicating that the instance of the link needs Coordination Review. You can use the Coordination Review tool to accept, reject, or postpone the change." This mechanism ensures synchronization between linked models. For example, if the architectural ceiling or wall that hosts electrical elements (such as lighting fixtures or devices) is modified, moved, or deleted, Revit triggers this alert in the workshared MEP model.
The Smithsonian Facilities Template Guide further emphasizes:
"Coordination Review identifies monitored elements whose hosts or geometry have changed in a linked model. The designer must review these to maintain design consistency." Hence, the warning does not indicate a clash or interference (Option A), nor a coordination message created manually in the architectural model (Option B), but specifically a change in a monitored element in the linked architectural model (Option D).
References:
Autodesk Revit MEP User's Guide - Chapter 46 "Copy/Monitor and Coordination Review," pp. 1084-1088 Smithsonian Facilities Revit Template User's Guide - Section 3.4 "Coordination Views," p. 86 Autodesk Revit Electrical Design Essentials - Coordination Workflows and Monitoring Elements
NEW QUESTION # 28
Refer to exhibit.

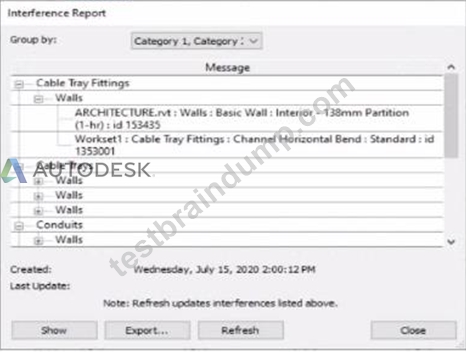

An electrical designer runs an interference check and reviews the Interference Report.
How can the designer select the cable tray fitting referenced in the interference to resolve the clash?
- A. Click Export, expand Cable Tray Fittings, and select Channel Horizontal Bend: Standard.
- B. Select the row with the cable tray fitting, click Show, and select the fitting.
- C. Select the row with the cable tray fitting, and activate IDs of Selection.
- D. Double-click the fitting that appears in the list.
Answer: B
Explanation:
When performing an Interference Check in Revit, the Interference Report dialog is generated. This report lists all interfering elements found. To select or locate a specific element-such as a cable tray fitting-the designer must use the Show command.
The official workflow from the Revit documentation clearly states:
"To see one of the elements that is intersected, select its name in the Interference Report dialog, and click Show. The current view displays the problem." This confirms that selecting the row that lists the interfering cable tray fitting and clicking Show will highlight and activate the view containing the clashing element-allowing it to be modified or moved to resolve the conflict.
This means the designer must:
Click the row containing the cable tray fitting in the Message list.
Click Show to highlight and locate it in the model view so the clash can be addressed directly.
This reference explicitly confirms that Show is the correct method to select the clashing cable tray fitting from the interference results in order to resolve the conflict.
NEW QUESTION # 29
Refer to exhibit.
An electrical designer is working on an Electrical Device Panel-Circuit tag. The designer tags a receptacle using the tag properties shown in the exhibit The receptacle is assigned to panel P203 and circuit 2.4.
Which option shows the correct tag?
- A.
- B.
- C.
- D.
Answer: C
Explanation:
In the exhibit, the Label Parameters for the electrical device tag are configured as follows:
This setup determines how the tag will display in Revit when applied to any device. Specifically:
The Panel parameter (P203 in this case) will be shown first.
A "/" separator follows because it's assigned as the suffix for the Panel parameter.
The Circuit Number (2,4) is displayed immediately after the slash, with no extra spaces or line breaks.
Since the Break column is unchecked, the values will appear on one continuous line, not split across lines.
Revit documentation for tag creation confirms this behavior:
"When defining label parameters in a tag family, the Prefix and Suffix fields control text that appears before or after the parameter value, while the Break checkbox controls whether the text wraps to a new line." Therefore, when the tag is applied to a receptacle on panel P203 and circuit 2,4, the final formatted text will be:
P203/2,4
This corresponds exactly to option B, where the panel and circuit appear on the same line separated by a slash, with no spaces or line breaks.
NEW QUESTION # 30
Which Revit command is used to map a Keynote Table file?
- A. Keynote Legend
- B. Keynoting Settings
- C. Keynote Manager
- D. Element Keynote
Answer: B
Explanation:
The correct command in Revit used to map (assign or browse to) a Keynote Table file is Keynoting Settings.
In Revit, keynotes are driven by an external keynote table, typically a tab-delimited TXT file that must be assigned (mapped) in the project so keynote tags can read values correctly. The official Autodesk Revit MEP documentation clearly identifies that the Keynoting Settings dialog is where this mapping is performed.
From the documentation:
To access the Keynoting Settings dialog, the instructions state:
"click Annotate tab ➤ Tag panel drop-down ➤ (Keynoting Settings)."
Regarding keynote table file location mapping:
"Keynote Table - Full Path displays the entire path of the keynote file... Saved Path displays the file name of the keynote file that is loaded." It goes further to explain file path types:
"Absolute identifies a specific folder... Relative finds the keynote file where the project file... is located... At Library Locations finds the keynote file where the stand-alone installation or network deployment specified." The command is explicitly referenced again when fixing a missing mapping:
"Unable to Load Keynote data. Check keynote table locations in Keynoting Settings."
"To specify the location of the keynote text file... click (Keynoting Settings)." Other listed options do not perform keynote file mapping:
Keynote Manager does not exist as a command in native Revit.
Element Keynote is a tagging method.
Keynote Legend only displays already-mapped keynote information.
NEW QUESTION # 31
What two ways can an electrical designer copy a cable tray type from a project to a template? (Select two.)
- A. 1 Open both the project and the template in the same Revit session.
2. In the template, activate Transfer Project Standards.
3. Choose to copy from the project and then select Cable Tray Types. - B. 1. Open the project and the template in separate Revit sessions.
2. In the template, activate Transfer Project Standards.
3. Choose to copy from the project and then select Cable Tray Types. - C. 1. Open both the project and the template in the same Revit session.
2. In the project, copy the cable tray to the clipboard.
3. Switch to the template and paste the cable tray in a view. - D. 1. Open the project and the template In separate Revit sessions.
2. In the project, copy the cable tray to the clipboard.
3. Switch to the template and paste the cable tray in a view. - E. 1. Open both the project and the template in the same Revit session.
2. In the project, select the cable tray and click Edit Family.
3. Click Load into Project and select the template to load the family into.
Answer: A,C
Explanation:
In Autodesk Revit for Electrical Design, there are two correct and officially supported methods to transfer or copy Cable Tray Types (including sizes, materials, and type properties) from an existing project into a template file (.rte). These methods ensure that all type definitions, fittings, and related MEP settings are preserved.
✅ Option B (Clipboard Copy within the same Revit session)
1. Open both the project and the template in the same Revit session.
2. In the project, copy the cable tray to the clipboard.
3. Switch to the template and paste the cable tray in a view.
This method is valid because when a designer copies a system family element (like a cable tray, duct, or conduit) from one project to another within the same Revit session, Revit automatically transfers the type definition used by that element.
According to the Revit MEP User's Guide, Chapter 17 - Electrical Systems:
"Copying a cable tray from one project to another carries its type properties with it, including size, material, and fittings, as Revit automatically loads the associated system family definition." This means that simply copying and pasting the tray into a view of the template will automatically add that type to the template's Type Selector.
✅ Option C (Transfer Project Standards)
1. Open both the project and the template in the same Revit session.
2. In the template, activate Transfer Project Standards.
3. Choose to copy from the project and then select Cable Tray Types.
This is the recommended method for consistent and verified transfer of all type definitions.
From the same guide under Panel Schedule Templates and System Types Management:
"Use Transfer Project Standards to copy system family types, such as Cable Tray Types, Conduit Types, and related MEP settings, between projects or into templates." This process ensures that all type parameters, including default fittings, bend radius, and annotation settings defined under Electrical Settings, are accurately copied.
References:
Autodesk Revit MEP User's Guide - Chapter 17 "Electrical Systems," pp. 407-409 (Cable Tray Management and Transfer Standards) Autodesk Revit MEP 2011 What's New - Section "Copy Styles Using Transfer Project Standards" Smithsonian Facilities Revit Template User's Guide - "Transferring MEP Types into Templates," pp. 68-71
NEW QUESTION # 32
Refer to exhibit.
Why is Synchronize with Central disabled?
After enabling collaboration for a project, an electrical designer observes the ribbon.
- A. The designer has unresolved editing requests.
- B. The central model is unavailable or not found.
- C. The designer has unrelinquished elements.
- D. The designer is working in the central model.
Answer: D
Explanation:
In Autodesk Revit, the Collaborate tab provides the tools necessary for managing multi-user worksharing environments. The Synchronize with Central command allows users to save their local changes back to the central model. However, this command becomes disabled under certain conditions - most notably when the user is currently working directly within the central file rather than a local copy.
The Autodesk Revit User's Guide - Worksharing and Collaboration section clearly explains this behavior:
"When you open the central file directly, the Synchronize with Central option is unavailable because all edits are already in the central file. Worksharing operations such as borrowing, relinquishing, or synchronization only apply to local copies created from the central model." This rule ensures that the integrity of the central model is preserved and that no user directly edits or synchronizes within it, preventing potential file corruption. In normal collaborative workflows, users open local copies of the central model. The local files maintain an editable subset of elements while allowing synchronization and relinquishing operations.
Thus, the disabled Synchronize with Central button (as shown in the exhibit) indicates that the designer is currently in the central model, not a local copy. Since synchronization is unnecessary in this state - all changes are automatically applied to the central file - the command is grayed out.
NEW QUESTION # 33
Refer to exhibit.
An electrical designer wants to organize the Protect Browser as shown in the exhibit. Select the correct options in order to achieve the desired organization. (Select three.)
Answer:
Explanation:
NEW QUESTION # 34
Refer to the exhibit.
- A. Properties > Edit Type > Single Line Symbology
- B. Project Browser > Conduits > Conduits with Fittings > Single Line Symbology
- C. Electrical Settings > Conduit Settings > Rise Drop > Single Line Symbology
- D. Object Styles > Conduits > Rise/Drop > Single Line Symbology
Answer: A
Explanation:
In Autodesk Revit MEP, conduit systems can be represented in plan views using either detailed or single-line symbology. The Single Line Symbology display setting is used for schematic or simplified representations - often in electrical riser or distribution diagrams.
The setting that controls whether conduits display in single-line or detailed form is found in the Type Properties of the conduit family, not in Object Styles or Electrical Settings. Specifically, it is accessed by selecting a conduit in the model and navigating to:
Properties Palette → Edit Type → Single Line Symbology
From there, users can define how fittings, rise/drop symbols, and conduits themselves are represented in single-line schematic mode. Adjusting this type parameter affects the graphical display for that conduit type throughout all applicable views where single-line graphics are used.
According to the Autodesk Revit MEP User's Guide (Electrical Systems → Conduit Systems section):
"The conduit type properties define the graphical representation in single-line drawings. By editing the Single Line Symbology in the Type Properties dialog, designers control how the conduit and fittings appear in plan views." This parameter is especially important in electrical documentation where simplified representations are required for coordination and electrical diagrams.
NEW QUESTION # 35
An electrical designer has created a family and loaded It Into the project. The designer wants to connect the family to a power circuit but the Power icon is not available when the family Is selected.
How should the designer fix the problem?
- A. Set the family parameter to Shared.
- B. Change the Voltage parameter value to non-zero.
- C. Add an electrical connector to the family.
- D. Set the distribution system for the family.
Answer: C
NEW QUESTION # 36
......
RVT_ELEC_01101 Premium Files Practice Valid Exam Dumps Question: https://actualtests.testbraindump.com/RVT_ELEC_01101-exam-prep.html
